Cảm biến siêu âm IFM UGT203 Ultrasonic sensor

Cám ơn bạn đã quan tâm đến sản phẩm của NTN.
Yêu cầu báo giá xin click vào đây.

Mr. Nam:

0982494745

Model: UGT203

Maker: IFM

Description: Cảm biến siêu âm

Cảm biến siêu âm IFM UGT203 Ultrasonic sensor

Very large detection range
Intuitive setting of the detection range via pushbutton or IO-Link
Clearly visible LED for indicating switching status and echo
With two programmable switchin...

Product characteristics

Electrical design

PNP

Output function

normally open / closed; (configurable)

Sensing range [mm]

150...1600; (Target: 200 x 200 mm)

Communication interface

IO-Link

Housing

Threaded type

Dimensions [mm]

M18 x 1 / L = 97.5

Electrical data

Operating voltage [V]

10...30 DC; (cULus - Class 2 source required)

Current consumption [mA]

Protection class

III

Reverse polarity protection

yes

Power-on delay time [s]

< 0.3

Converter frequency [kHz]

230

Inputs / outputs

Number of inputs and outputs

Number of digital outputs: 2

Outputs

Total number of outputs

Electrical design

PNP

Number of digital outputs

Output function

normally open / closed; (configurable)

Max. voltage drop switching output DC [V]

2.2

Permanent current rating of switching output DC [mA]

100

Switching frequency DC [Hz]

Short-circuit protection

yes

Overload protection

yes

Monitoring range

Sensing range [mm]

150...1600; (Target: 200 x 200 mm)

Blind zone [mm]

150

Angle of aperture cylindrical [°]

15; (±2)

Max. deviation from the 90° angle sensor/object [°]

± 4

Accuracy / deviations

Temperature compensation

yes

Hysteresis [%]

< 2

Switch-point drift [%]

-2...2

Repeatability

1 %

Resolution [mm]

Notes on the accuracy / deviation

The indicated values are reached after a warm-up time of min. 20 minutes

Software / programming

Parameter setting options

hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel

SIO mode

yes

Required master port class

Min. process cycle time [ms]

3.2

IO-Link process data (cyclical)

Function	bit length
process value	16
device status	4
binary switching information	2

IO-Link functions (acyclical)

application specific tag; operating hours counter

Supported DeviceIDs

Type of operation	DeviceID
default	700

Note

For further information please see the IODD PDF file at "Downloads"

Operating conditions

Ambient temperature [°C]

-20...70

Storage temperature [°C]

-30...80

Protection

IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	3 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	3 V
EN 55011	class A

Vibration resistance

EN 60068-2-6 Fc

(10-55) Hz 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz

Shock resistance

EN 60068-2-27 Ea

30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes

MTTF [years]

132

UL approval

Ta	-20...70 °C
voltage supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]

66.5

Housing

Threaded type

Dimensions [mm]

M18 x 1 / L = 97.5

Thread designation

M18 x 1

Material

PBT; PA; epoxy glass ceramics

Tightening torque [Nm]

Displays / operating elements

Display

Switching status	2 x LED, yellow
echo	1 x LED, green

Teach function

yes

Accessories

Items supplied

lock nuts: 2, plastics

rubber washers: 2

Remarks

cULus - Class 2 source required

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12; coding: A

Sản phẩm liên quan

Mitsubishi TH-T18 0.17A Rờ le nhiệt

Model: TH-T18 0.17A

Maker: Mitsubishi

Description: Rờ le nhiệt

Keyence PR-M51N3 Cảm biến quang

Model: PR-M51N3

Maker: Keyence

Description: Cảm biến quang

Bộ phân phối lưu chất IWASHITA AA30N Adapter Assembly

Model: AA30N

Maker: IWASHITA

Description: Bộ phân phối lưu chất

Air Cylinder CKD CMK2-00-32-75 Xi lanh khí nén

Model: CMK2-00-32-75

Maker: CKD

Description: Xi lanh khí nén

Festo ADN-25-25-I-P-A (536263) Xi lanh khí nén

Model: ADN-25-25-I-P-A

Maker: Festo

Description: Xi lanh khí nén

Solenoid valve Festo VUVG-L18-M52-MT-G14-1R8L P/N: 8031532 Van điện từ

Model: VUVG-L18-M52-MT-G14-1R8L

Maker: Festo

Description: Van điện từ

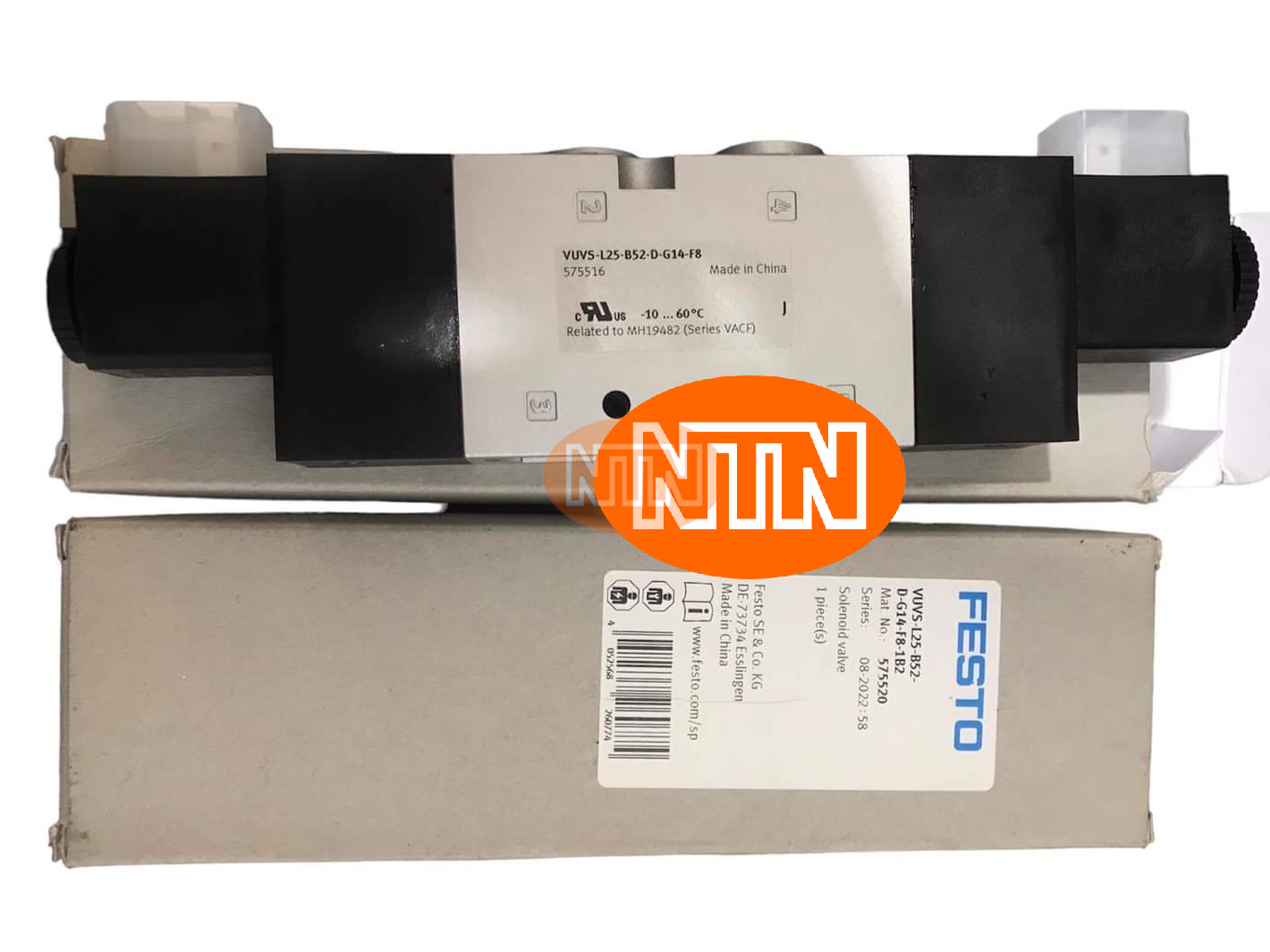

Van điện từ Festo VUVS-L25-B52-D-G14-F8-1B2

Model: VUVS-L25-B52-D-G14-F8-1B2

Maker: Festo

Description: Van điện từ

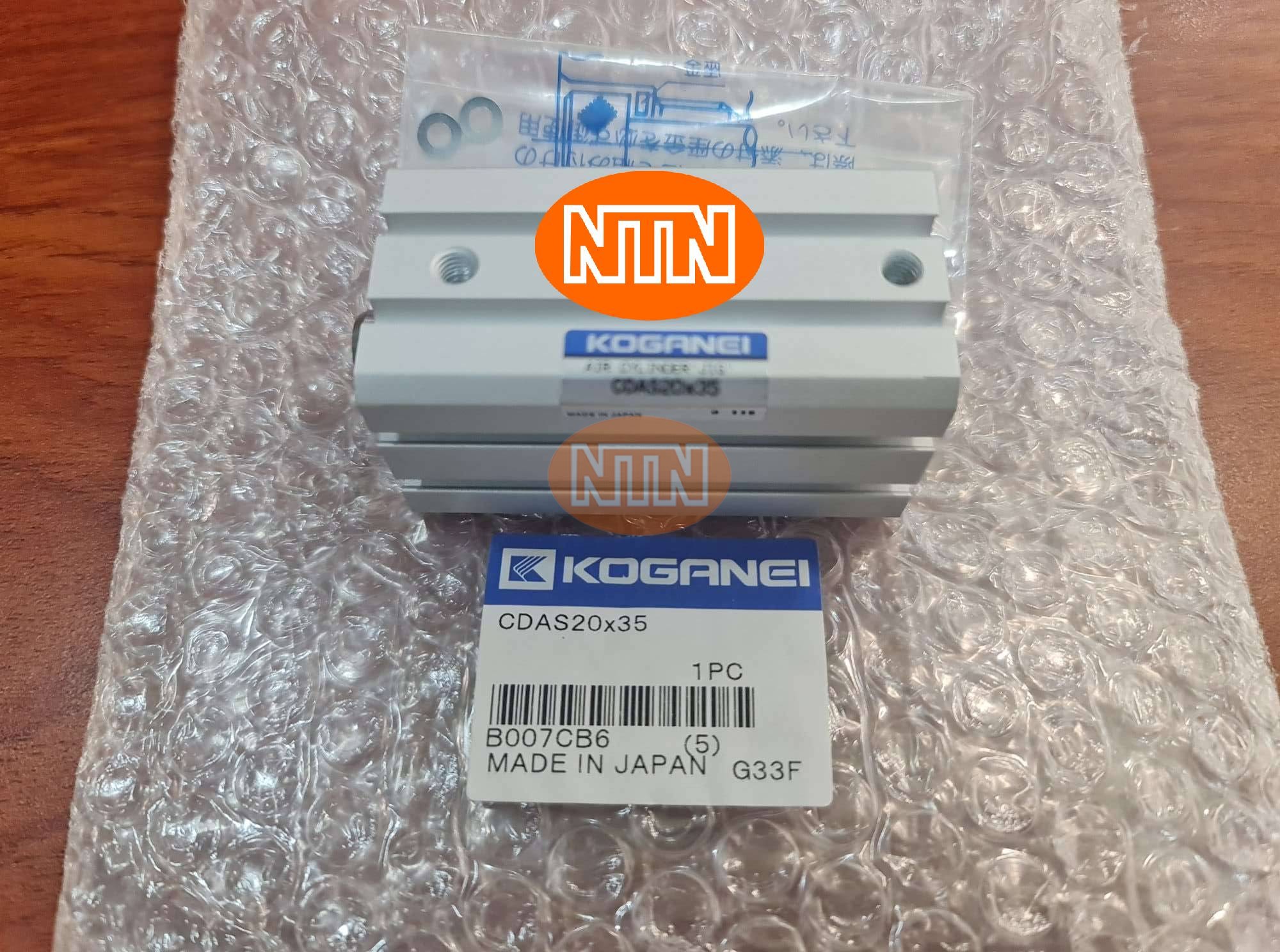

Xi lanh Koganei CDAS20X40-ZE235B2 Air Cylinder
